Achieve consistent and uniform conformal coating with the BV-500P. Optimized airflow, handles quick-curing fluids, and easy to clean for efficient production.

Overview

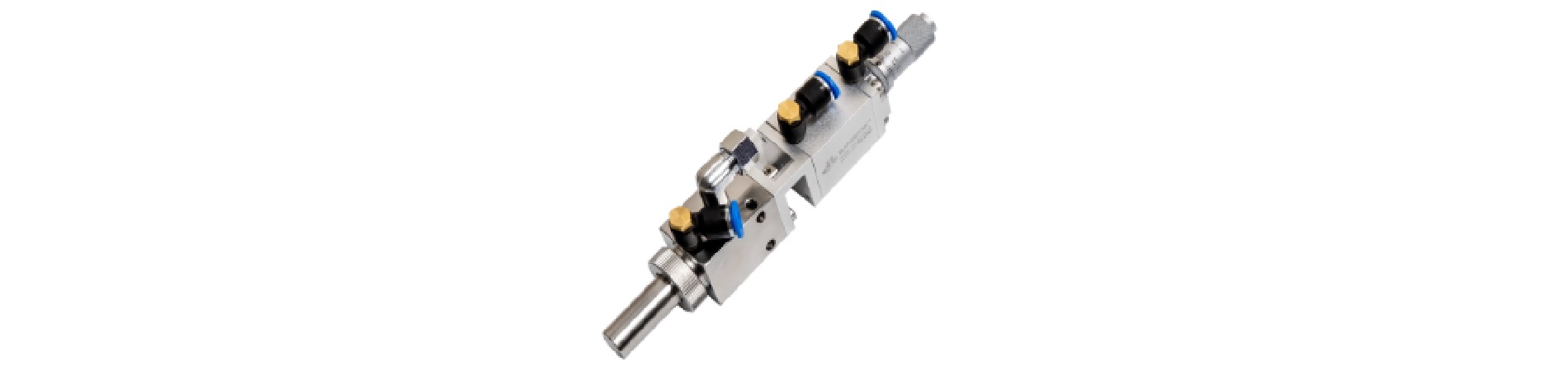

The BV-500P is a high-performance conformal coating valve designed to deliver uniform spraying with an improved internal airflow structure. Engineered to handle quick-curing conformal coating fluids, the BV-500P features a nozzle placement inside the valve to ensure consistent dispensing shape for precise and clean coating applications. The valve is also designed for easy cleaning, particularly after curing, making it ideal for high-efficiency, high-precision conformal coating tasks.

Key Benefits

• Uniform Spray Patterns: Optimized internal airflow ensures consistent and uniform spray patterns for precise and efficient coating.
• Quick-Curing Fluid Compatibility: Handles quick-curing conformal coating fluids effectively, minimizing downtime and maximizing productivity.
• Enhanced Precision: Nozzle placement inside the valve and micrometer adjustment provide precise control over spray output for accurate and repeatable results.
• Easy Maintenance: Designed for easy cleaning, especially after curing, reducing downtime and improving overall maintenance efficiency.

Key Features

• Improved Airflow Structure: Optimized internal airflow ensures uniform spray patterns and efficient fluid control.
• Quick-Curing Fluid Compatibility: Suitable for quick-curing conformal coating fluids, with a nozzle positioned inside the valve for consistent fluid dispensing.
• Micrometer Control: Equipped with a micrometer adjustment for precise spray control, allowing users to fine-tune the spray output.
• Easy to Clean: The internal design allows for easy cleaning of the nozzle, especially after curing, reducing downtime and improving maintenance efficiency.



  Product specifications:

  Model	BV-500P
  ON/OFF Method	Needle Off
  Applicable viscosity	1~1,000cps
  Input Air Pressure	5kgf/cm2
  Max. fluid IN-LET pressure	10kgf/cm2
  Max. operation number	240times/min
  IN-LET Fittings	PT 1/8″
  Wet-part material	SUS 303
  Valve material	SUS 303
  Weight	400g
  Control	Double-Action
  Stroke Control	Micrometer
