Streamline your small component assembly with the TAD-200SP. This unique controller combines vacuum pick-up and precise dispensing for faster, more accurate handling of delicate parts. Blaze offers custom integration solutions. Learn more!
Are you a manufacturer or professional seeking to improve the speed and accuracy of your small component assembly? The TAD-200SP vacuum pick-up and dispensing controller is designed to streamline your workflow, combining precise fluid dispensing with a convenient vacuum handling system. Blaze can help you integrate the TAD-200SP seamlessly into your production line or develop custom solutions to maximize its potential.
Integrated Pick-Up and Dispensing for Enhanced Efficiency

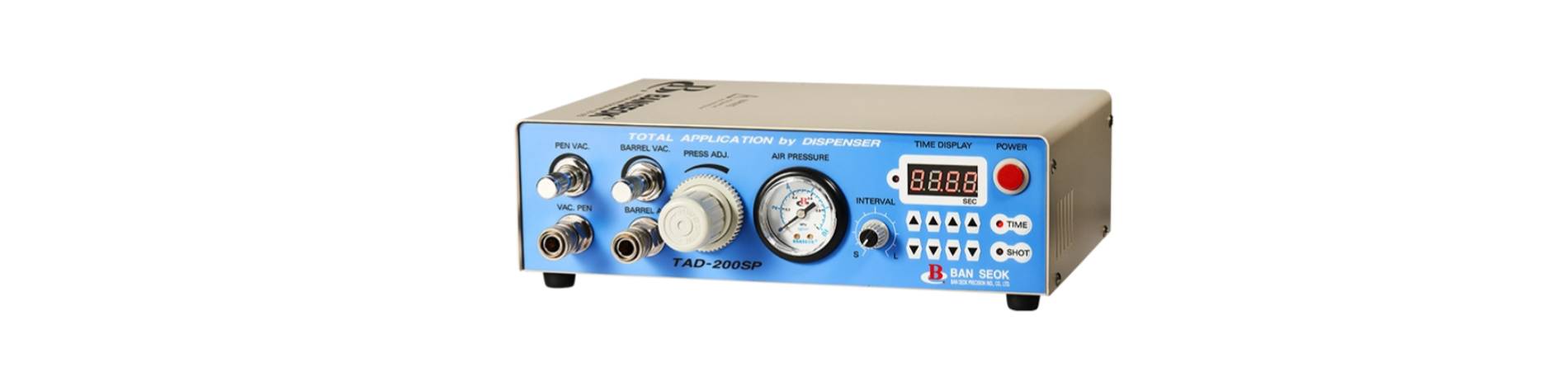

The TAD-200SP is a specialized controller that integrates fluid dispensing and vacuum pick-up functionality into a single device. This innovative design allows you to transport small components with the vacuum pick-up pen while simultaneously dispensing adhesives or other materials, significantly improving efficiency in assembly and rework operations.
Precision and Versatility for Delicate Components
The TAD-200SP is ideal for applications requiring high accuracy, such as assembling lenses, glass, and other small parts. Its adjustable vacuum control ensures gentle handling of delicate components, while the versatile vacuum pad options (∅2 to ∅32) accommodate a wide range of component sizes.
Product specifications:
| Model | TAD-200SP |
| Control Method | 0.01~99.99 sec |
| Time Range | 0.01~99.99 sec |
| Interval Timer | 0.01~99.99 sec |
| Vacuum Pressure | 0~ -350mmHg |
| Out Signal | Open connector, DC 24V 20mmsec(Relay |
| Power Source | AC220V 50/60Hz (AC100V 50/60Hz:Option) |
| Power Consumption | 32W |
| External Dimension & weight | 282(W) x 186(D) x 81(H)mm, 3.0kg |
Key Features and Benefits:
- Dual Functionality: Combines dispensing and vacuum pick-up in one device, streamlining assembly and repair.
- Adjustable Vacuum Control: Precise control of vacuum strength for various component sizes and weights.
- Versatile Vacuum Pad Options: Wide selection of pad sizes (∅2 to ∅32) for diverse component dimensions.
- Ideal for Precision Assembly: Perfect for high-accuracy applications like lens, glass, and small part assembly.
- User-Friendly Operation: Equipped with the MN-5 pick-up pen for easy handling and reworking.
Blaze specializes in designing and implementing customized small component assembly solutions. Our team of experts can assist you with:
- System Integration: Integrate the TAD-200SP seamlessly into your existing assembly lines.
- Custom Design: Develop tailored systems that leverage the TAD-200SP’s capabilities to meet your specific needs.
- Technical Support: Receive expert guidance and support to maximize the performance of your TAD-200SP controller.
- Process Optimization: Analyze your current assembly processes and identify areas for improvement using the TAD-200SP.
Contact Blaze today to learn how the TAD-200SP vacuum pick-up and dispensing controller can enhance your small component assembly operations, improving both speed and accuracy.
