Achieve precise fluid control with the BV-520M. This high-performance valve features an adjustable stroke, allowing for accurate and consistent delivery of exact fluid volumes. Versatile and cost-effective, it minimizes waste and maximizes efficiency across a wide range of applications.

Overview

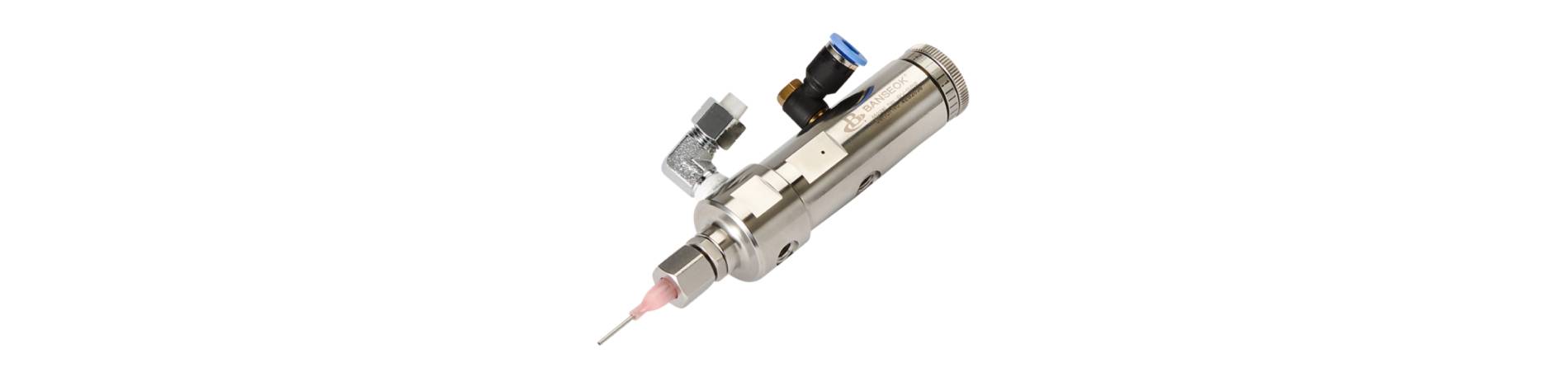

The BV-520M Precision Valve is a high-performance solution engineered for precise fluid dispensing. Featuring an adjustable needle pin stroke, this valve enables accurate and consistent delivery of exact fluid volumes across a wide range of applications.

Benefits

• Enhanced Accuracy: The adjustable stroke mechanism allows for fine-tuning of dispense volume, minimizing waste and ensuring optimal material usage.
• Versatility: Suitable for a wide range of low to medium viscosity fluids, making it adaptable to various dispensing needs.
• Improved Efficiency: Ideal for integration into automated production lines, boosting productivity and streamlining processes.
• Durability: Equipped with a replaceable standard needle, ensuring long-term reliable operation and minimizing downtime.
• Cost-Effectiveness: Precise dispensing reduces material waste, leading to significant cost savings.

Key Features

• Adjustable Needle Pin Stroke: Easily adjust the stroke for precise control over dispense volume.
• High-Precision Fluid Control: Delivers accurate and consistent fluid amounts, minimizing variability.
• Versatile Application: Suitable for various fluid types and a wide range of dispensing requirements.
• Easy Needle Replacement: Enables quick and easy needle replacement for continuous operation.



  Product specifications:

  Model	BV-520M
  ON/OFF Method	Needle Off
  Applicable viscosity	1~100,000cps
  Input Air Pressure	5kgf/cm2
  Max. fluid IN-LET pressure	10kgf/cm2
  Max. operation number	240times/min
  IN-LET Fittings	PT 1/8”
  Wet-part material	SUS 303
  Valve material	SUS 303
  Weight	300g
