Achieve unparalleled precision in your manufacturing process with micro-nozzles. This post examines the challenges of micro-dispensing and how specialized micro-nozzles, made from materials like stainless steel and tungsten carbide, deliver precise volumes of fluids into ultra-fine holes. Explore applications in semiconductors, medical devices, and more, and discover the key factors for selecting the ideal micro-nozzle.

Understanding the Challenges of Micro-Dispensing

Micro-dispensing presents unique challenges. Traditional dispensing methods often lack the precision required for extremely small holes, leading to material waste, inconsistent application, and compromised product performance. This is where micro-nozzles come into play. These specialized tools are engineered to deliver precise volumes of fluids or other materials into incredibly small openings, ensuring accuracy and consistency.

Key Components for Ultra-Fine Hole Dispensing

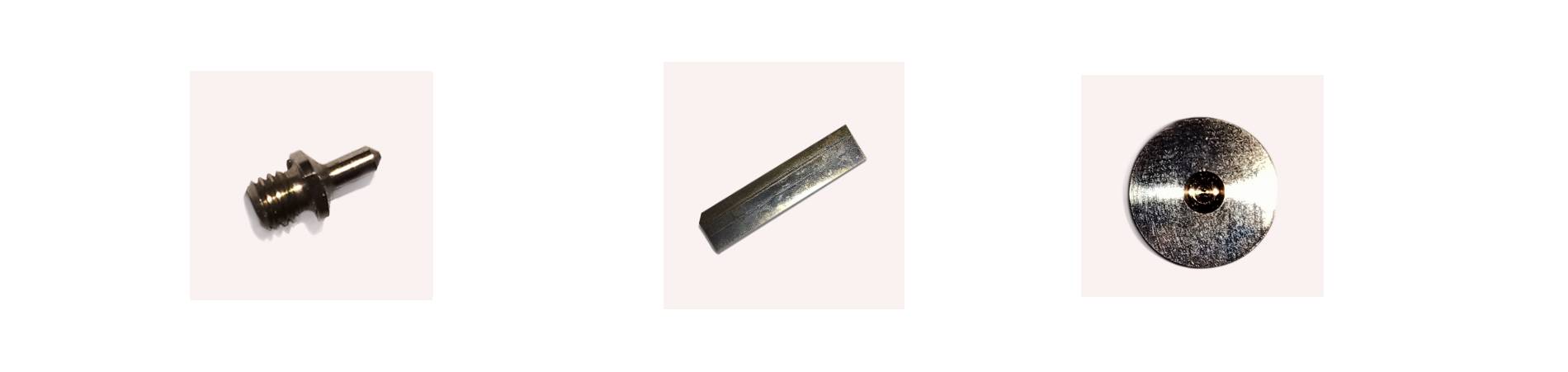

• Micro-Needle/Dispensing Nozzle: These ultra-fine needles are crafted from materials like stainless steel and are designed for accurate dispensing. With diameters reaching as small as 50μm, they are perfect for applications demanding extreme precision. They are used in various applications, including:

  • Dispensing Nozzles: Precisely controlling the flow of liquids or adhesives.
  • Ion Beam Grid: Used in semiconductor manufacturing for precise material deposition.
  • Special Semiconductor Components: Enabling the fabrication of advanced electronic devices.



• Ion Beam Grid Hole Processing (FIB Grid): Utilizing Molybdenum (Mo), these grids feature incredibly small holes with diameters down to 10μm. Fabricated using Focused Ion Beam (FIB) techniques, they represent the pinnacle of micro-fabrication, with minimum hole diameters reaching 0.015mm.

• Microfluidic Nozzles: Also featuring 50μm diameters and constructed from WC (likely Tungsten Carbide), these nozzles are designed for precise fluid handling in microfluidic applications.

Material Considerations for Micro-Nozzles

The choice of material is crucial for micro-nozzle performance.

• Stainless Steel: Offers excellent corrosion resistance and durability, making it a popular choice for general micro-dispensing.
• Molybdenum (Mo): Possesses high temperature strength and is often used in specialized applications like ion beam grids.
• Tungsten Carbide (WC): Known for its extreme hardness and wear resistance, making it ideal for abrasive materials or high-pressure applications.

Applications Across Industries

Micro-nozzles play a vital role in a wide range of industries:

• Semiconductor Manufacturing: Enabling the fabrication of integrated circuits and microchips.
• Electronics Assembly: Precise application of adhesives and conductive materials.
• Medical Device Manufacturing: Producing intricate medical devices with precise fluid delivery.
• Pharmaceutical Research: Precise dispensing of reagents and drugs in research and development.
• Microfluidics: Controlling and manipulating small volumes of fluids for various applications.

Choosing the Right Micro-Nozzle

Selecting the appropriate micro-nozzle is critical for achieving optimal results. Factors to consider include:

• Material Compatibility: Ensuring the nozzle material is compatible with the dispensed substance.
• Hole Diameter: Matching the nozzle diameter to the required dispensing volume and target hole size.
• Pressure and Flow Rate: Considering the pressure and flow rate requirements of the application.
• Durability and Longevity: Selecting a nozzle that can withstand the demands of the application.

Conclusion

Micro-nozzles are essential tools for achieving precise dispensing into ultra-fine holes. Their applications span numerous industries, driving innovation and enabling the production of advanced products. By understanding the different types of micro-nozzles, their materials, and key features, manufacturers can select the optimal solution for their specific micro-dispensing needs. As technology continues to advance, the demand for even more precise and miniaturized dispensing solutions will undoubtedly drive further innovation in this critical field.
