Measure UV dose and intensity accurately in tight spaces with the MicroCure® system. Compact, portable, and ideal for various applications including small container curing, printing, and medical device manufacturing.

Accurate, Repeatable UV Measurement for Demanding Applications
The MicroCure® UV Measurement System provides precise and repeatable measurements of UV energy density (Joules/cm²) and peak irradiance (Watts/cm²) in tight spaces. This compact and portable system is ideal for applications where traditional radiometers are too large, offering an affordable and reliable solution for ensuring consistent UV curing.

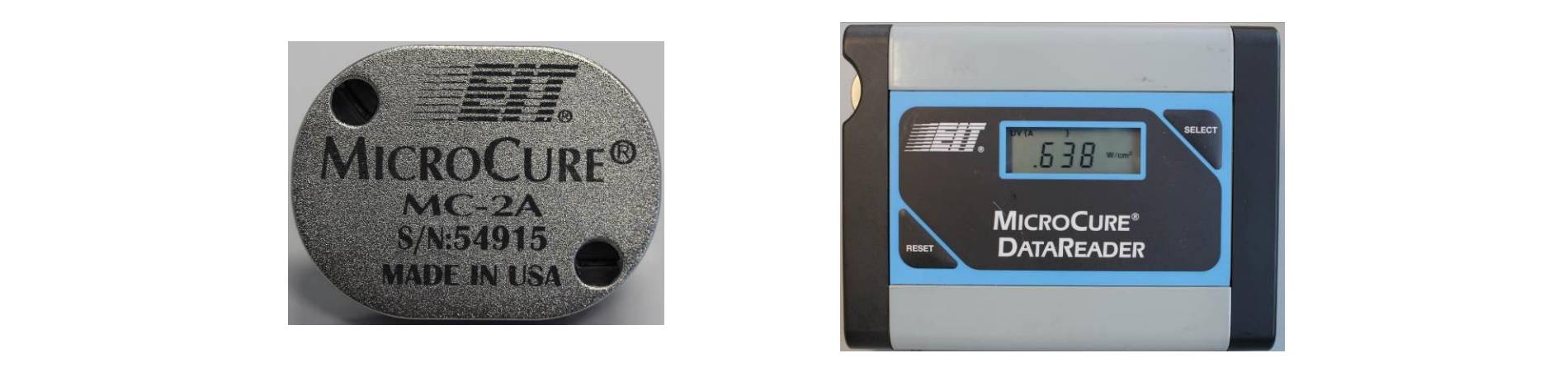

MicroCure® UV Radiometer: Small Size, Big Performance

• Ultra-Compact: Tiny footprint (1.3” x 0.95” x 0.25” / 33 x 24.13 x 6.35 mm) allows for use in even the most confined areas.
• Lightweight and Portable: Weighs only 0.33 ounces (9.4 grams) for easy placement and minimal interference.
• High Sample Rate: 2048 Hz sample rate ensures accurate capture of UV exposure.
• Multiple Dynamic Ranges: Available in UVA band with 10W, 2W, or 200mW dynamic ranges.
• Long-Lasting Battery: Battery-powered for portability.
• Automatic Sleep Mode: Conserves battery life by entering sleep mode if not exposed to UV within four minutes.
• Limited Use: Each MicroCure is designed for 200 readings or one year of use, whichever comes first.

MicroCure® DataReader: Easy Data Retrieval and Display

• Portable and User-Friendly: Compact device for communicating with and displaying data collected by the MicroCure.
• Dual Display: Toggles between Energy Density and Irradiance values with the “SELECT” button. Displays the UV band of the MicroCure.
• MicroCure Activation: Activates the MicroCure unit and initiates data collection with the “RESET” button.
• Reading Counter: Displays the number of readings an individual MicroCure unit has undergone.
• Replaceable Battery: Uses a user-changeable 9-volt battery with a low battery indicator and auto shut-off.
• Universal Compatibility: Works with all MicroCure units.
• Data Transfer: Data is transferred via the two case halves; avoid shorting them against metal or through handling (conductive coating, moist hands).

Applications:

The MicroCure® excels in UV applications requiring a small footprint and accurate, repeatable UV values. Ideal for:

• Narrow Conveyor Curing: Credit card processing and similar applications.
• Small Container Curing: Bottles, cans, tubes, and other small items.
• Batch Applications: Semiconductor printing, small part bonding, and more.
• Printing: Digital, pad, and other printing processes.
• Part Curing: Where flood lamps in fixtures are used.
• Dimensional Fixtures: Curing medical products like catheters.
• Small/Large Object Curing: Furniture, headlamps, dashboards, wood moldings, and more.
• Flexible Light Guide Systems: Fits easily within light guide setups.

Benefits:

• Accurate and Reliable Measurements: Provides precise readings of UV energy density and peak irradiance.
• Compact and Portable: Ideal for use in tight spaces and on the production floor.
• Easy to Use: Simple operation makes it accessible to all personnel.
• Cost-Effective: An affordable solution for accurate UV measurement.
