Precision Curing at Your Fingertips: Maximize Efficiency with Incure Programmable UV Flood Lamps
In the world of manufacturing and industrial applications, achieving consistent, high-quality results is paramount. When it comes to UV curing, precision is key. That’s where Incure Programmable UV Flood Curing Lamps shine, offering unparalleled control and efficiency for a wide range of applications.
Why Programmable UV Flood Curing?
Traditional UV flood lamps deliver a constant output, which can be inefficient and lead to inconsistent curing, especially when dealing with diverse materials or complex processes. Incure Programmable UV Flood Lamps revolutionize this by allowing you to precisely control the UV intensity, exposure time, and even create custom curing profiles.
Key Benefits of Incure Programmable UV Flood Curing Lamps:
- Unmatched Precision and Control: Tailor the UV output to the specific requirements of your materials and applications, ensuring optimal curing and minimizing waste.
- Enhanced Consistency and Repeatability: Program custom curing profiles to achieve consistent results across batches, eliminating variations and improving product quality.
- Increased Efficiency and Throughput: Optimize curing times and reduce energy consumption by delivering the precise amount of UV energy needed.
- Flexibility for Diverse Applications: Easily adjust settings for different materials, substrates, and curing requirements, making these lamps ideal for versatile production environments.
- Data Logging and Process Monitoring: Track curing parameters and monitor process performance for quality control and documentation.
- Reduced Material Waste and Rework: Precise control minimizes over-curing and under-curing, reducing scrap and rework.
- Improved Safety and Ergonomics: Programmable settings can automate curing processes, reducing operator exposure to UV radiation.

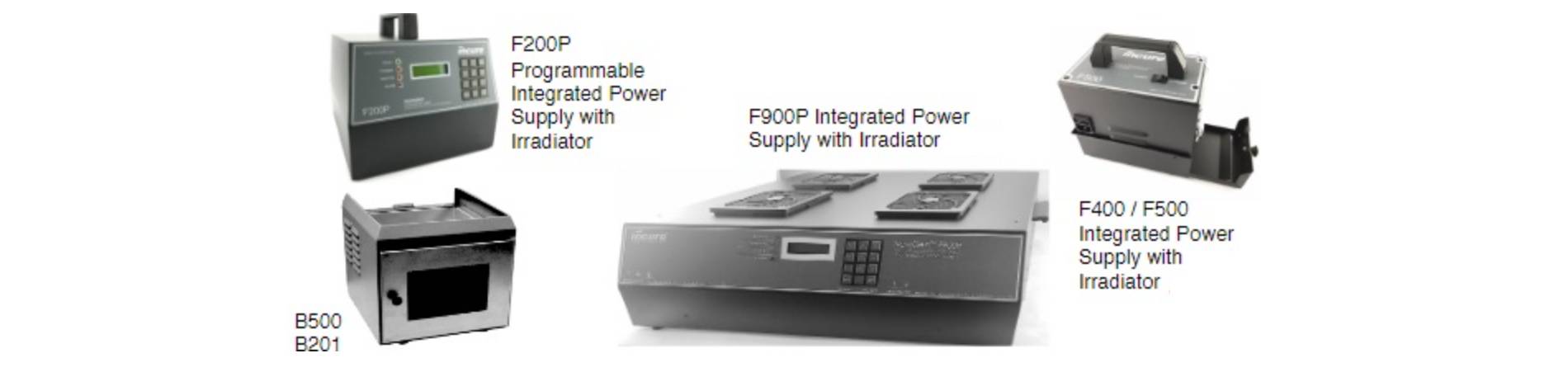

| Configuration | F100 | F200 | F200P | F900P | F400 | F500 | |||||||
| Type of Lamp | ARC Flood | ARC Flood, Programmable | |||||||||||
|
Intensity in mW/cm2 (Measured with EIT Power Puck Distance from Lamp Base) |
UVA | UVV | UVA | UVV | UVA | UVV | UVA | UVV | UVA | UVV | UVA | UVV | |
| @0.5 | 270 | 235 | 360 | 330 | 360 | 330 | 360 | 330 | 455 | 420 | 570 | 505 | |
| @1.0 | 245 | 215 | 320 | 300 | 320 | 300 | 320 | 300 | 415 | 390 | 535 | 480 | |
| @1.5″ | 215 | 190 | 285 | 270 | 285 | 270 | 285 | 270 | 380 | 360 | 500 | 450 | |
| @2.0″ | 185 | 165 | 250 | 240 | 250 | 240 | 250 | 240 | 345 | 330 | 465 | 420 | |
| @2.5″ | 155 | 140 | 215 | 210 | 215 | 210 | 215 | 210 | 310 | 300 | 435 | 390 | |
| @3.0″ | |||||||||||||
| @4.0″ | |||||||||||||
| Intensity Adjustment | No | Yes | No | ||||||||||
| Available Wavelengths | 256, 320, 365 | ||||||||||||
| Working Distance | 1.5” – 3” | 1” – 3” | 1” (Optimum) | ||||||||||
| Expected Bulb Life* | > 2,000 hrs | ||||||||||||
| Intensity Decay over Life | 45% | ||||||||||||
| Static Uniformity @ 2.0” | 0.78 | ||||||||||||
| Dynamic Uniformity @ 3.0” | 0.90 | ||||||||||||
| Curing Area | 6” x 8” | 12” X 16” | 5” X 5” | 3” X 5” | |||||||||
| Curing Box Adjustable Heights (optional purchase) |
1.75”, 3.5”, 5.25”, 7.0”, 9.0” | Not Applicable | Not Applicable | ||||||||||
| Temperature Management | Forced Air with Standby Mode | ||||||||||||
| Power Input | 100-240V, 50/60Hz, Auto-Ranging | ||||||||||||
| External Control Port | None | LCD Programmable Interactive Panel | None | ||||||||||
| Ordering Part Number | F100-1A (UVA) F100-1B (UVB) F100-1C (UVC) |
F200-1A (UVB) F200-1B (UVB) F200-1C (UVC) |
F200P-1A (UVA) F200P-1B (UVB) F200P-1C (UVC) |
F900P-1A (UVA) F900P-1B (UVB) F900P-1C (UVC) |
F400-1A (UVA) F400-1B (UVB) F400-1C (UVC) |
F500-1A (UVA) F500-1B (UVB) F500-1C (UVC) |
|||||||
| Irradiator Dimension / Weight | 11” x 10” x 9” (11 lb) | 11” x 10” x 9” (11 lb) | 11” x 10” x 9” (13 lb) | 17.5” x 23” x 7.8” (26.8 lb) | 8” x 5” x 6” (3.25 lb) | 8” x 5” x 6” (3.25 lb) | |||||||
| Controller Dimension / Weight | |||||||||||||
| Curing Drawer / Box (Optional Purchase, Unless Specified) |
B500 | B500 | B500 | B201 | Included in Full Complete Set Only | ||||||||
| Curing Drawer / Box Dimension |
12” x 12” x 12” | 12” x 12” x 12” | 12” x 12” x 12” | 20” x 24” x 14” | 8” x 5” x 2.6” | 8” x 5” x 2.6” | |||||||
| Interlock Safety Feature | Integrated When Mounted on B300 Curing Box | Standby / Full Power On Mode | |||||||||||
| C9000 TM Conveyor Mounting | Yes | Not Applicable | Yes | ||||||||||
Applications Across Industries:
Incure Programmable UV Flood Curing Lamps are ideal for a wide range of industries, including:
- Electronics Manufacturing: Curing adhesives for component bonding, conformal coatings, and potting.
- Medical Device Manufacturing: Curing adhesives for medical device assembly, coatings for catheters, and sterilization processes.
- Automotive: Curing adhesives for bonding components, sealing, and coating applications.
- Aerospace: Curing adhesives for bonding composite materials and sealing applications.
- Printing and Packaging: Curing UV inks and coatings on labels, packaging materials, and printed electronics.
- General Manufacturing: Curing adhesives for product assembly, bonding dissimilar materials, and applying protective coatings.
- Research and Development: Precise control allows for experimentation and optimization of UV curing processes for new materials and applications.
Choosing the Right Incure Programmable UV Flood Lamp:
When selecting an Incure Programmable UV Flood Lamp, consider the following factors:
- Spectral Output: Match the UV wavelength to the absorption spectrum of your materials.
- Intensity and Power: Choose a lamp with sufficient power to achieve desired curing times.
- Programmability: Evaluate the range of programmable features and ease of use.
- Size and Configuration: Select a lamp size and configuration that fits your workspace and application requirements.
- Integration and Automation: Consider compatibility with existing production systems and automation capabilities.
Invest in Precision Curing with Incure Programmable UV Flood Lamps:
Incure Programmable UV Flood Curing Lamps offer the ultimate in precision, control, and efficiency for your UV curing needs. Experience the benefits of consistent, high-quality results, reduced waste, and increased productivity.
Contact Blaze today to discuss your specific application requirements and discover how Incure Programmable UV Flood Lamps can revolutionize your curing process.
