Dispensing System

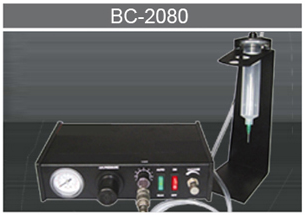

Liquid Dispenser

Model BC-2080
Part No. 300116
Dispensing Time 0.01 - 1s;0.1 - 10s;0.2-20s
Repeat Tolerance 0.005s
Voltage 240VAC 50/60Hz
Internal Voltage 24VDc
Air Input Up to 100 psi
Air Output 1 - 100 psi(0.1 - 7 bar)
External dimension and weight 240(W) × 210(D) ×((70) mm, 3.5kg

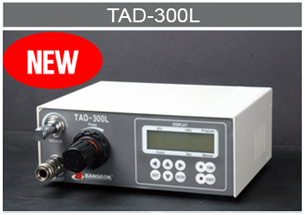

Barrel Controller Dispenser

Model TAD-300L
Part No. 240162
Control Method Electronic / Pneumatic system
Patten Channel 1 - 10 Channels
Memory Function  500 Memory
Dispensing Pressure 0 - 10kg/cm2 [S:Stsndard], 0 - 4kg/cm2 [L:Option], 0 - 2kg/cm2 [P:Option]
Dispensing Time 0.001 sec -  9.999 sec
Dispensing Section LCD Digital Display
Voltage 240VAC 50/60Hz
Internal Voltage 24VDc
Input / Output Signal Open Connector, DC 24V [Selector by change]
Power Source AC 220V 50/60Hz [AC 100V 50/60Hz: Option]
External dimension and weight 176(W) × 154(D) × 73(H)mm, 3.5kg

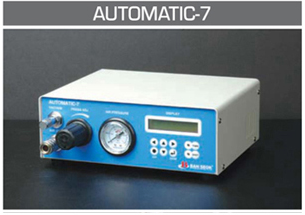

Time Calibration Type Dispenser Controller

Model AUTOMATIC - 7
Part No. 240002
Control Method Electronic / Pneumatic system
Patten Channel 1 - 10 Channels
Memory Function  500 Memory
Dispensing Pressure 0 - 10kg/cm2 [S:Stsndard], 0 - 4kg/cm2 [L:Option], 0 - 2kg/cm2 [P:Option]
Dispensing Time 0.01 sec -  99.99 sec
Dispensing Section LCD Digital Display
Voltage 240VAC 50/60Hz
Internal Voltage 24VDc
Input / Output Signal Open Connector, DC 24V [Selector by change]
Power Source AC 220V 50/60Hz [AC 100V 50/60Hz: Option]
External dimension and weight 232(W) × 186(D) × 81(H)mm, 2.7kg

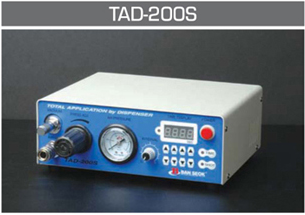

Barrel Control Dispenser Controller

Model TAD - 200S
Part No. 240004
Control Method Electronic / Pneumatic system
Dispensing Pressure 0 - 10kg/cm2 [S:Stsndard], 0 - 4kg/cm2 [L:Option], 0 - 2kg/cm2 [P:Option]
Time Range 0.01 sec -  99.99 sec
Interval Timer 0.01 sec -  3.99 sec
Vacuum Pressure 0 - 350mmHg
Out Signal Open Connector, DC 24V 20mmsce[Relay], 100mmsce[Relay]
Power Source AC 220V 50/60Hz [AC 100V 50/60Hz: Option]
Power Consumption 32W
External dimension and weight 232(W) × 186(D) × 81(H)mm, 2.7kg

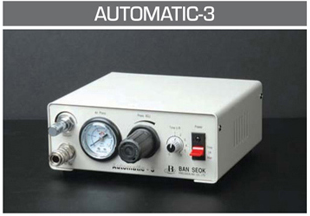

Analog Dispenser Controller

Model AUTOMATIC -3
Part No. 240001
Control Method Electronic / Pneumatic system
Dispensing Pressure 0 - 10kg/cm2 [S:Stsndard], 0 - 4kg/cm2 [L:Option], 0 - 2kg/cm2 [P:Option]
Vacuum Pressure 0 - 350mmHg
Dispensing Time 0.01 sec - 5.99 sec
Power Source AC 220V 50/60Hz [AC 100V 50/60Hz: Option]
Power Consumption 32W
External dimension and weight 193(W) × 174(D) × 75(H)mm, 2.5kg

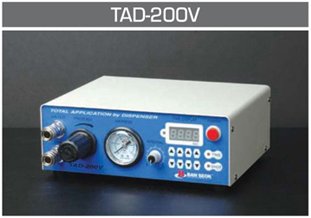

Valve Control Dispenser Controller

Model TAD - 200V
Part No. 240097(Foot Pedal) / 240161(Hand Switch)
Control Method Electronic / Pneumatic system
Dispensing Pressure 0 - 10kg/cm2 [S:Stsndard], 0 - 4kg/cm2 [L:Option], 0 - 2kg/cm2 [P:Option]
Time Range 0.01 sec -  99.99 sec
Interval Timer 0.01 sec -  3.99 sec
Out Signal Open Connector, DC 24V 20mmsce[Relay], 100mmsce[Relay]
Power Source AC 220V 50/60Hz [AC 100V 50/60Hz: Option]
Power Consumption 32W
External dimension and weight 232(W) × 186(D) × 81(H)mm, 2.7kg

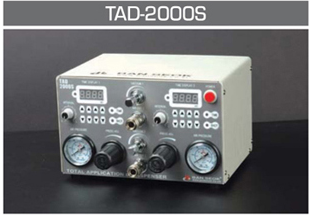

TAD-200S Double Type

Model TAD - 2000S
Part No. 240105
Control Method Electronic / Pneumatic system
Dispensing Pressure 0 - 10kg/cm2 [S:Stsndard], 0 - 4kg/cm2 [L:Option], 0 - 2kg/cm2 [P:Option]
Time Range 0.01 sec -  99.99 sec
Interval Timer 0.01 sec -  3.99 sec, 0.01 - 05.99 min
Out Signal Open Connector, DC 24V 20mmsce[Relay], 100mmsce[Relay]
Power Source AC 220V 50/60Hz [AC 100V 50/60Hz: Option]
Power Consumption 64W
External dimension and weight 236(W) × 171(D) × 141(H)mm, 4.0kg

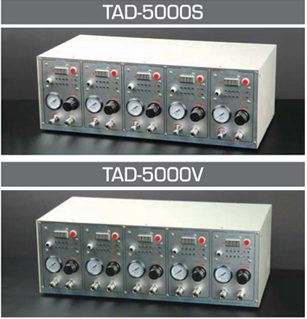

TAD - 200S / TAD - 200V Quintuple Type

Model TAD - 5000S / TAD - 5000V
Part No. 240106 / 240107
Control Method Electronic / Pneumatic system
Dispensing Pressure 0 - 10kg/cm2 [S:Stsndard], 0 - 4kg/cm2 [L:Option], 0 - 2kg/cm2 [P:Option]
Time Range 0.01 sec -  99.99 sec
Interval Timer 0.01 sec -  3.99 sec, 0.01 - 05.99 min
Out Signal Open Connector, DC 24V 20mmsce[Relay], 100mmsce[Relay]
Power Source AC 220V 50/60Hz [AC 100V 50/60Hz: Option]
Power Consumption 160W
External dimension and weight 600(W) × 302(D) × 205(H)mm, 13.5kg

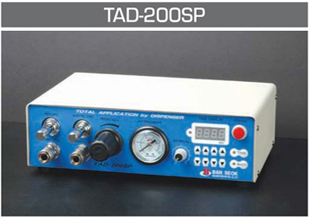

Vacuum Pick-up Control Dispenser Controller

Model TAD - 200SP
Part No. 240005
Control Method Electronic / Pneumatic system
Time Range 0.01 sec -  99.99 sec
Interval Timer 0.01 sec -  3.99 sec
Vacuum Pressure 0 - 350mmHg
Out Signal Open Connector, DC 24V 20mmsce[Relay], 100mmsce[Relay]
Power Source AC 220V 50/60Hz [AC 100V 50/60Hz: Option]
Power Consumption 32W
External dimension and weight 282(W) × 168(D) × 81(H)mm, 3.0kg

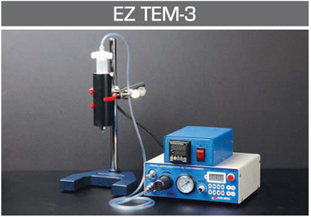

Barrel Heater Controller

Model EZ TEM - 3
Part No. 240160
Indication Degree SV± 0.3% or in is big, side
Control Method ON / OFF Control P, PI, PD, PIDF, PIDS
Indication Method 7 Segment LED Display
Data[PV]:RED, Index value[SV] :GREEN
Control Sensitivity 1 - 100 [0.1 - 100.0]°C Variable
[ON/OFF Control use at the time of]
Temperature Range Low Temperature: Normal Temperature -80°C
High Temperature: Normal Temperature -200°C
Power Source AC110 - 240V 50 / 60HZ
Dimension 121(W) × 150(D) × 65(H)mm

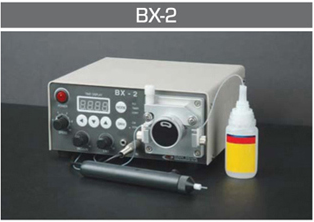

Tubing Dispenser Controller

Model BX - 2
Part No. 240003
Control Method Electronic / Rotaly tubing system
Dispensing Pressure 0.15kg/cm2
Time Range 0.01 - 99.99 sec
Rotor Speed 1 - 120rpm[max.]
Flow Speed 0.01 - 6ml/ min.[Teflon tube]
0.1 - 20ml/ min.[Silicone tube]
Material Viscosity 300CPS[max.]
Pump Direction Both Direction (Forward &  Reverse)
Power Source AC 100 -220V 50/60Hz [Free Voltage]
External dimension and weight 190(W) × 165(D) × 81(H)mm, 2.6kg

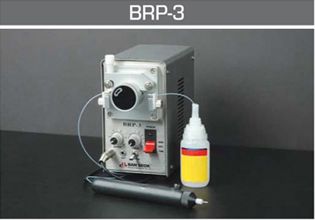

Analog Tubing Dispenser Controller

Model BRP - 3
Part No. 240108
Control Method Electronic / Rotaly tubing system
Dispensing Pressure 0.15kg/cm2
Dispensing  Time 0.01 - 3.99
Rotor Speed 1 - 120rpm[max.]
Flow Speed 0.01 - 6ml/ min.[Teflon tube]
0.1 - 20ml/ min.[Silicone tube]
Material Viscosity 300CPS[max.]
Pump Direction Both Direction (Forward &  Reverse)
Power Source AC 100 -220V 50/60Hz [Free Voltage]
External dimension and weight 83(W) × 126(D) × 137(H)mm, 2.0kg

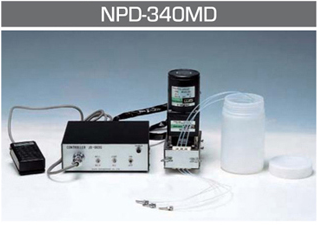

Multi Tubing Dispenser Controller

Model NDP - 340MD-4CH /  NDP - 340MD-6CH
Part No. 240137 / 2401378
Central Plate 12m/m
No. of Channels 4ch / 6ch
Cycle Time 1.2
Max. Amount of Despension/ch 46µl

Max. Amount of Despension for Tube  Diameter
(Inside × Outside)

 0.5×1.0  1.2µl
1.4×2.0  1.2µl
2.4×3.0  132µl
3.3 ×3.9 46µl

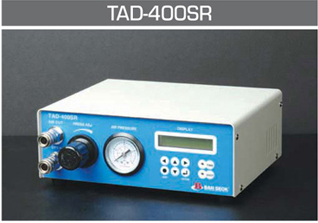

Spray Valve Dispenser Controller

Model TAD -400SR
Part No. 240009
Control Method Electronic / Pneumatic system
Patten Channel 1 - 10 Channels
Memory Function 500 Memory
Dispensing  Pressure 0.6 - 6kg/cm2, [0 - 2kg/cm2:Option]
Dispensing  Time 0.01 sec - 99.99 sec
Dispensing  Section LED Digital Display
Input /Output Signal Open Connector, DC24V, 20mmsec[Relay]
Power Source AC220V 50/60Hz [AC100V :50/60Hz: Option]
External dimension and weight 232(W) × 186(D) × 81(H)mm, 2.7kg
Dispensing Controllers | Dispenser Systems
Automatic-7 (240002) Time Calibration Type Dispenser Controller, TAD-200S (240002) Barrel Control Dispenser Controller, TAD-200V (240077 / 240161) Valve Control Dispense Controller,
Automatic-3 (240001) Analog Dispenser Controller, CYSCO BC-2080 (300116), TAD-2000S (240105) Multi Dispenser Controller, TAD-5000S (240106 ) / TAD-5000V (240107) Quintuple Type Controller,
BX-2 (240003) Tubing Dispenser Controller, BRP-3 (240108) Analog Tubing Dispenser Controller, NPD-340MD (240137 / 240138) Multi Tubing Dispenser Controller, Barrel Dispensing Controller (240162)
TAD-200SP (240005) Vaccum Pick-Up Control Dispense Controller, EZ TEM-3 (240160) Barrel Heater Controller, TAD-400SR (240009) Spray Valve Dispenser Controller
